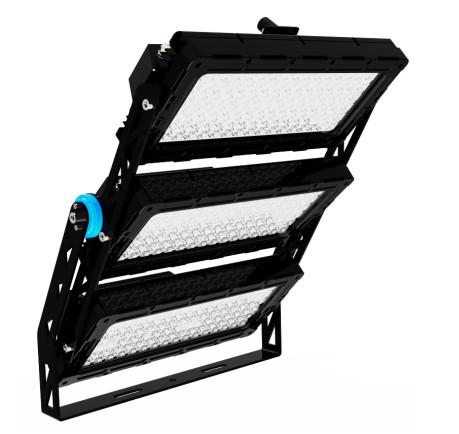

150lm/W 500W Sports Outdoor Project LED Floodlight IP66

Sports Project LED Flood Light Surge Protector Device PFC Function Available

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;

> Aiming Device: Laser Pointer;

> Logistics areas (Ports)

> Stadiums and Racing tracks

> Public squares

> Apron lighting (Airports), Parking and Industrial areas

> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.	DR-SPL300-EGXP	DR-SPL400-EGXP	DR-SPL500-EGXP	DR-SPL600-EGXP	DR-SPL800-EGXP	DR-SPL1000-EGXP
System Watts/W	300W	400W	500W	600W	800W	1000W
System Efficiency/LPW	150~160LPW
Lumen Output/lm	48.000±5%	64.000±5%	80.000±5%	96.000±5%	128.000±5%	160.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	20°/30°/60°/90°/140*60° Optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-EGXP	13.1	590*505*250	14.2	1PCS/CTN
DR-SPL400-EGXP	16.9	680*505*250	18.2	1PCS/CTN
DR-SPL500-EGXP	4.8	790*505*250	23.5	1PCS/CTN
DR-SPL600-EGXP	22.1	830*590*250	28.4	1PCS/CTN
DR-SPL800-EGXP	30.8	830*690*250	32.5	1PCS/CTN
DR-SPL1000-EGXP	36.5	830*790*250	39.8	1PCS/CTN

FAQ

Q1:How to design the stadium LED flood light?
RE:(1) The lighting design of the stadium LED floodlight, with the aim of energy-saving and emission-reducing green lighting, chooses stadium lights with advanced technical performance and excellent quality. Through optimizing design and scientific lighting, with the least investment in stadium lighting, the best stadium lighting effect can be achieved.
(2) The lighting quality target of basketball LED flood light.
1. Color rendering index 90
The color rendering index of the stadium LED flood light is as high as 90, which is very close to the sunlight and the color is pure. It can vividly display the real color of the stadium space and the surface of the object.
2. Glare index 25 (national standard 30)
The stadium LED floodlight lighting is not dazzling, not dazzling, not dazzling, and has no dazzling effect. In any position and any angle, the sphere flying in the air can be seen, clearly seen, seen real, and hit accurately.
3. No flicker.
The lighting effect is smooth and stable, without fluctuation, and no flicker hazard. It ensures that the sphere is flying in the air without ghosting, the flight trajectory is real, the air positioning is accurate, and the hitting is accurate.
4. Low light decay and long service life
The light attenuation is small, the current margin is large, the chip rated current is 60mA, and the actual use is only 40mA, which increases the life of the lamp and improves the utilization efficiency. The lamp beads have passed LM-80 certification.
5. Energy saving
Fully meet the lighting requirements of the stadium's LED floodlights, achieve the minimum power consumption of the stadium, and achieve real energy saving. The lighting design of the stadium has been optimized and selected stadium lamps. The power consumption of the stadium lighting is determined as the lighting power consumption of the entire stadium lighting, controlled within 3 kWh per hour.
