> BASELine Version:
> STANDARDLine Version:
> PROLine Version: 140LPW
> PRIMELine Version:
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity；
> High Brightness SMD2835(1W) LEDs, DUALRAYS Own-developed Driver;
> IP65 / IK08 Protection;
> 60°/90°/120°beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> No UV or IR and completely mercury free;
> L70/B20 @ 55.000h;
> Customized supported for special projects;
> SAN'AN SMD2835 LEDs: LM80/TM-21 Available;
> LM79/TM21/ISTMT/LCP and IES/LDT files available;

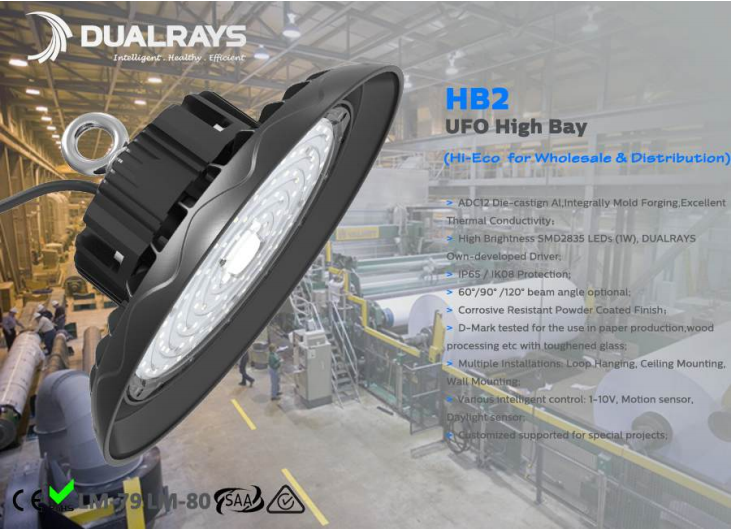

(HB2 UFO High Bay)
> Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;
> North American Market: ETL/CETL,DLC Premium Pending;
> Oceania Market: SAA,C-Tick,RCM
Options:

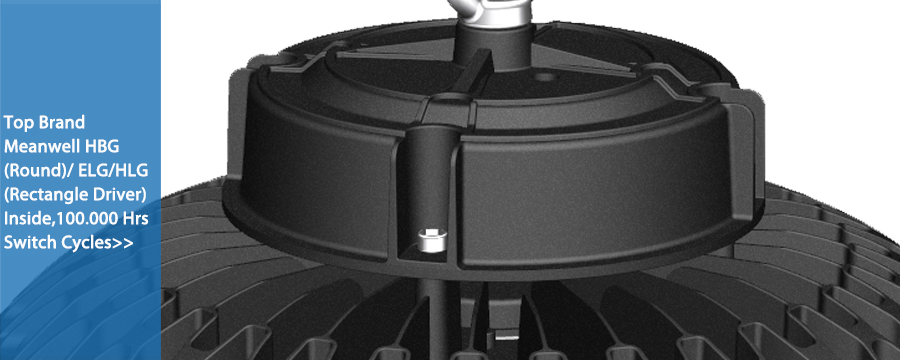

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen;
> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Reflector : PC reflector / Al reflector;
> Lens : 60°/90° (with Pearl or Stripe Lens)/120° (PC or Toughened Glass Cover)

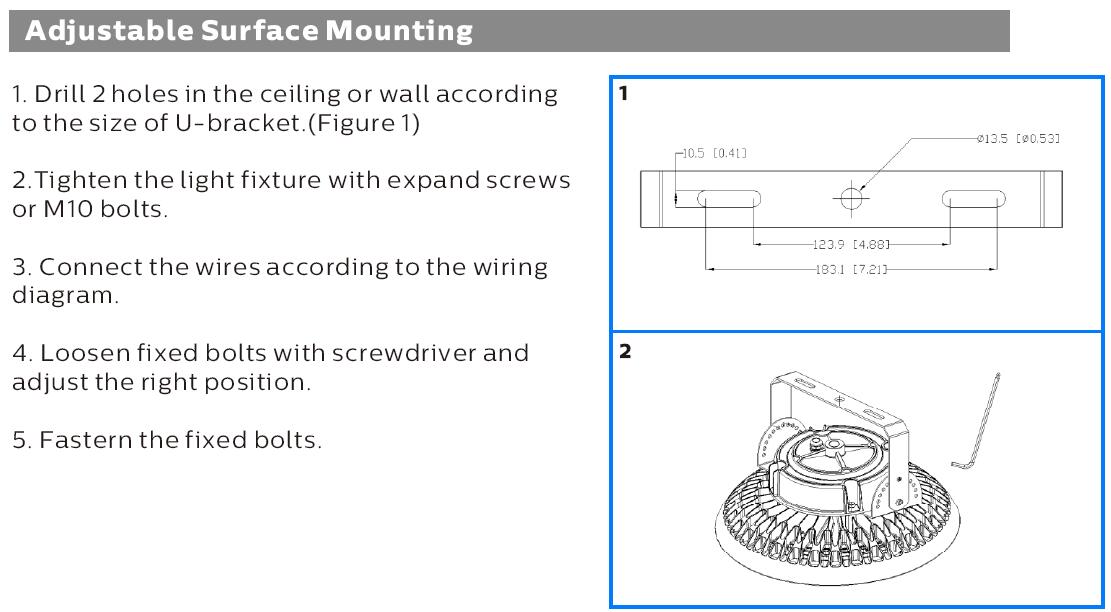

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement
| Model No. | DR-HB100-DGXP | DR-HB150-DGXP | DR-HB200-DGXP | DR-HB240-DGXP |
| System Watts/W | 100W | 150W | 200W | 240W |
| System Efficiency/LPW | 140LPW |
| Lumen Output/lm | 14.000±5% | 21.000±5% | 28.000±5% | 33.600±5% |
| Rated Input Voltage/V | AC100~277V, 50/60Hz |
| LEDs Light Source | SMD3030 |
| SDCM | <5 |
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) |
| CRI/Ra | >70Ra (>80Ra for Option) |
| Power Factor | >0.95 |
| THD | <10% |
| Beam Angle(Optional) | 60°/90°/120° |
| UGR | <25 |
| Surge Protection | 3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional |
| LED Driver | Meanwell HBG/ELG/HLG,Sosen |
| IP Rating | IP65 |
| Dimming(Optional) | 0/1-10V/DALI/Zigbee |
| Sensor(Optional) | Motion Sensor,Daylight Sensor |
| Emergency(Optional) | Available (30W @ 3Hrs for Standard) |
| Protection Class | ClassⅠ |
| Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional |
| Material | Aluminum+PC |
| Lifespan/hrs | 70.000 Hrs (Ta=30℃@L70) |
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) |
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) |
| Installation(Optional) | Loop Hanging, Ceiling Mounting, Wall Mounting |
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
| Character/Power | 100W | 150W | 200W | 240W | |
| A / mm | Φ290 | Φ340 | Φ380 | Φ380 |
| B / mm | 171 | 181 | 183 | 183 |
DALI Device
DALI Intelligent Control Diagram
DALI Intelligent Control Operator Interface
| Model No. | Net Weight/Kg | Outer Carton Size/mm | Gross Weight/Kg | QTY”/CTN |
| DR-HB100-DGXP | 3.5 | 355*350*165 | 3.9 | 1PCS/CTN |
| DR-HB150-DGXP | 3.6 | 380*380*150 | 4.1 | 1PCS/CTN |
| DR-HB200-DGXP | 4.8 | 415*410*175 | 5.5 | 1PCS/CTN |
| DR-HB240-DGXP | 5.1 | 415*410*175 | 5.9 | 1PCS/CTN |
FAQ
Q1: What are the precautions for designing LED high bay lights?
RE:To improve the quality of LED lighting fixtures, the design of LED lighting fixtures is a crucial part. Nowadays, new technologies, new materials and new processes have been continuously applied to the design of LED high bay lights, laying a solid foundation for the design of LED high bay lights. However, the design of LED high bay lights involves more details, so we need to strictly follow the following important precautions to reflect the design process and methods? Dualrays takes you to understand!
1. Structural design: The structural design of LED high bay lights involves not only the mechanical structure of the entire lamp, but also the beautiful appearance of the lamp.
2. Heat dissipation design: Crystal lens is used for light distribution to meet the lighting needs of different occasions; the transparent structure design is adopted to optimize the heat dissipation structure to ensure the life of the lamp.
3. Power selection: The traditional high bay lights are mostly 250W or 400W high pressure sodium lamps and metal halide lamps, which are quite different from the characteristics of the new LED high bay lights.
4. Lamp body selection: LED industrial and mining lamp body is made of light alloy material, special sealing and surface coating treatment, to ensure that the lamp will never corrode in harsh environments such as humidity and high temperature, and will never rust. The lamp body, the surface is anodic oxidation and hardening treatment, the texture is thick, compressive and wear-resistant, and will never fade.
V. Cost and benefit evaluation: Compared with high-pressure sodium lamps or metal halide lamps for plant lighting, the initial investment cost of LED high bay lamps is obviously much higher than that of traditional lamps. However, because the LED light source has the characteristics of high luminous efficiency, and when it is made into a lamp, the advantage of the LED light source's strong directivity is easily reflected. The efficiency of the LED high bay lamp is much higher than that of the traditional lamp, so its energy-saving characteristics are Can be clearly reflected.
Q2:What should I pay attention to during the installation of LED high bay lights?
RE:LED high bay lights are more and more used in industries and other places. They are industrial electronic products and need to be fixed to a designated position during use. This involves an installation problem, so what should be paid attention to during the installation process What about?
1. Before installation, you must check the integrity of the LED high bay light and complete accessories.
2. The installer must be required to hold a professional electrician certificate during installation. In this way, it is possible to avoid damage to LED high bay lights due to installation errors.
3. Make sure that the power cord of the lamp has sufficient length and not subject to tension or tangential force. Avoid excessive tension when installing the connection of the lamp, and don't make the connection knotted. The output connection should be distinguished, not to be confused with other lamps.
Fourth, the connection on the LED lamp can be passed through the drill hole and the connection behind the lamp can be fixed with a wire clamp, to ensure that the fixing is firm.
5. The distance between the product and flammable materials should be at least 0.2m, and the zenith to be installed should have a gap of 2 cm. The lamps cannot be installed inside the zenith or on the wall with a heat source. Pay attention to low pressure and high Piezo wires are routed separately.
After installation, you need to conduct a power-on test. If some lamps fail to light up, you need to troubleshoot the circuit or lamps. After ensuring that all lamps are normally lit, the installation of the LED high bay light is considered complete.
|
|

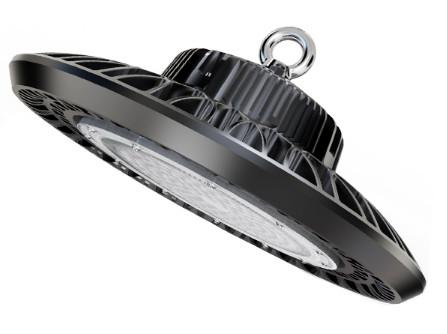

140LPW Hi-Eco HB2 100W UFO High Bay Light 5000K For Europe Wholesale With CE ROHS Images
|
