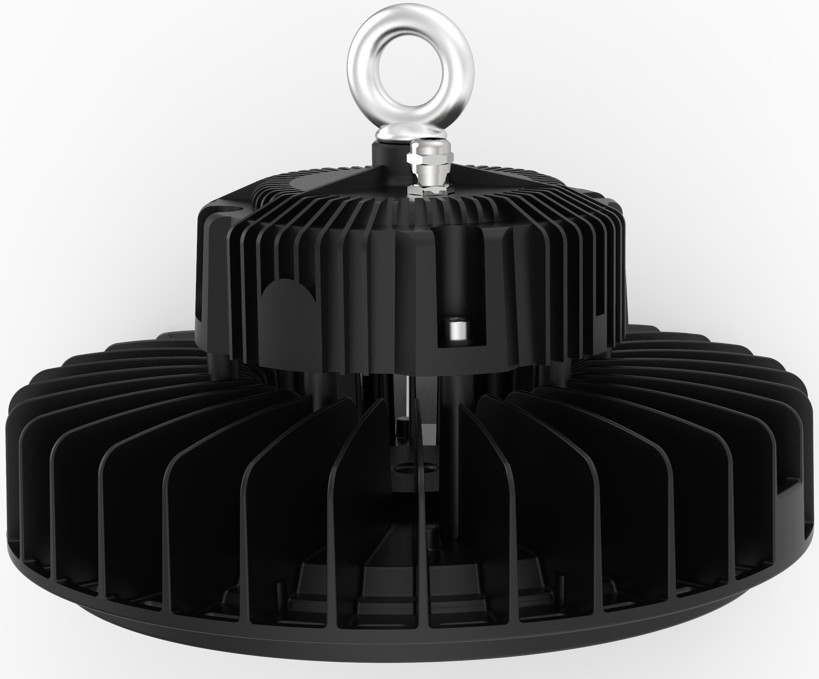

New developed HB4.5 UFO High Bay Light
Quick detail:
> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity; > High Brightness SMD2835 LEDs (1W), DUALRAYS Own-developed Non-isolated Driver; > IP65 / IK08 Protection; > 60°/90° /120°beam angle optional; > Corrosive Resistant Powder Coated Finish; > D-Mark tested for the use in paper production,wood processing etc with toughened glass; > Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting; > Various intelligent control: 1-10V,Motion sensor,Daylight sensor,Zigbee and Emergency; > No UV or IR and completely mercury free; > L70/B20 @ 60.000h; > Customized supported for special projects;
Options:
> Driver: DUALRAYS Own-developed Non-isolated Driver; > Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency; > Reflector : PC reflector / Al reflector; > Lens : 60°/90°/120° beam angle optional; > Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;
| Model No. | DR-HB100-XGXP | DR-HB150-XGXP | DR-HB200-XGXP |
| System Watts/W | 100W | 150W | 200W |
| System Efficiency/LPW | 140LPW / 160LPW Optional |
| Lumen Output/lm | 14.000 / 16.000±5% | 21.000 / 24.000±5% | 28.000 / 32.000±5% |
| Rated Input Voltage/V | AC100~277V, 50/60Hz |
| LEDs Light Source | SMD2835 (1W) |
| SDCM | <5 |
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) |
| CRI/Ra | >70Ra (>80Ra for Option) |
| Power Factor | >0.95 |
| THD | <10% |
| Beam Angle(Optional) | 60°/90°/120° Optional |
| UGR | <25 |
| Surge Protection | 3.75~4KV SPD built in Driver |
| LED Driver | LIFUD / SOSEN Round/Rectangle Driver |
| IP Rating | IP65 |
| Dimming(Optional) | 0/1-10V/Zigbee |
| Sensor(Optional) | Motion Sensor,Daylight Sensor |
| Emergency(Optional) | Available (30W @ 3Hrs for Standard) |
| Protection Class | ClassⅠ |
| Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional |
| Material | Aluminum+PC (Toughened Glass Cover Optional) |
| Lifespan/hrs | 60.000 Hrs (Ta=30℃@L70) |
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) |
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) |
| Installation(Optional) | Loop Hanging, Ceiling Mounting, Wall Mounting |
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
Advantage:
1.High lumen output 140LPW/160LPW 2.Full Die-casted material. 3.Easy installation,time saving. 4.fast delivery with good quality 5.Customized logo to expand your brands. 6.Widely used in industrial lighting.
> Factories / Warehouses / Supermarket > Exhibitions / Showrooms / Animal Farm > Barns and Riding Halls / Logistic Center > High Rooms and Halls / Stadium / Chemical Plant > Traditional lamp replacement
